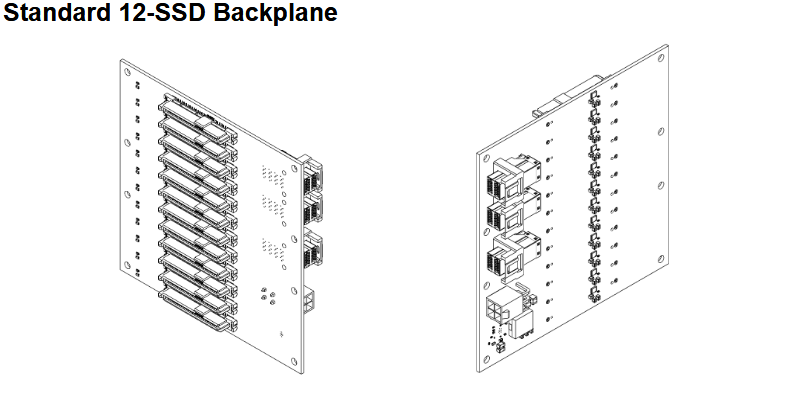

12-SSD Backplane¶
Overview¶
The Standard 12-SSD Backplane provides high-density 2.5" drive storage with integrated power regulation and SAS/SATA connectivity for up to 12 solid-state drives or 2.5" hard drives.
This backplane is designed for maximum 2.5" drive density while providing clean power delivery and flexible connectivity options.
Key Features¶
- 12 SATA/SAS 2.5" drive connectors for maximum storage density
- Integrated 5V power regulation from 12V input
- Triple SAS output connectors for flexible HBA connectivity
- Hot-swap capability with proper drive cages
- LED activity indicators for each drive bay
Technical Specifications¶
| Parameter | Specification |
|---|---|
| Drive Connectors | 12 x SATA/SAS 2.5" |
| SAS Outputs | 3 SAS Out Connectors |
| Input Voltage | 12V DC |
| Output Voltage | 5V (25A Max) |
| Max Power Consumption | 84 Watts |
| Hot-Swap | Yes |

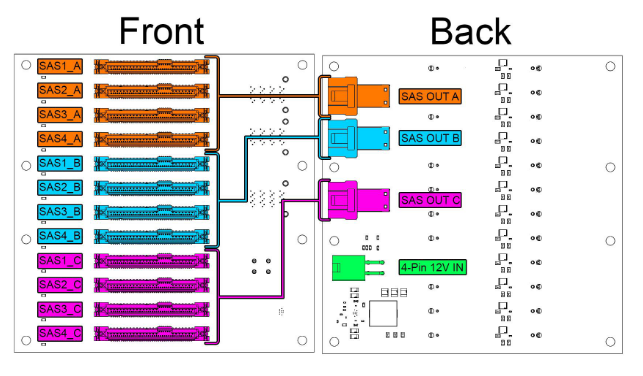

Backplane Diagram¶
Status Indicators¶
Each drive bay includes:
- Power LED Green when drive is powered
Power LED Compatibility
Some drives do not trigger the LED but are functioning correctly.
Installation Guide¶
For PCB and Backplane Installation see PCB Installation
For Drive Cage Installation see Cage Installation
Drive Installation¶
- Insert drives gently into drive cages.
- Gently press drive down until firmly seated.
- Verify with LED indicators after system power-on.
