4-U.2 Backplane¶
Overview¶
The Standard 4-U.2 Backplane provides high-density 2.5" drive storage with integrated power regulation and SAS/SATA connectivity for up to 4 U.2 15mm drives.
Key Features¶
- 4 U.2 2.5" drive
- Integrated 3.3V power regulation from 12V input
- Dual MCIO output connectors
Technical Specifications¶
| Parameter | Specification |
|---|---|
| Drive Connectors | 4 x U.2 2.5" 15mm |
| SAS Outputs | 2 MCIO Out Connectors |
| Input Voltage | 12V DC |
| Output Voltage | 12V pass-through, 3.3V regulated |
| Max Power Consumption | 100 Watts |
| Hot-Swap | No |

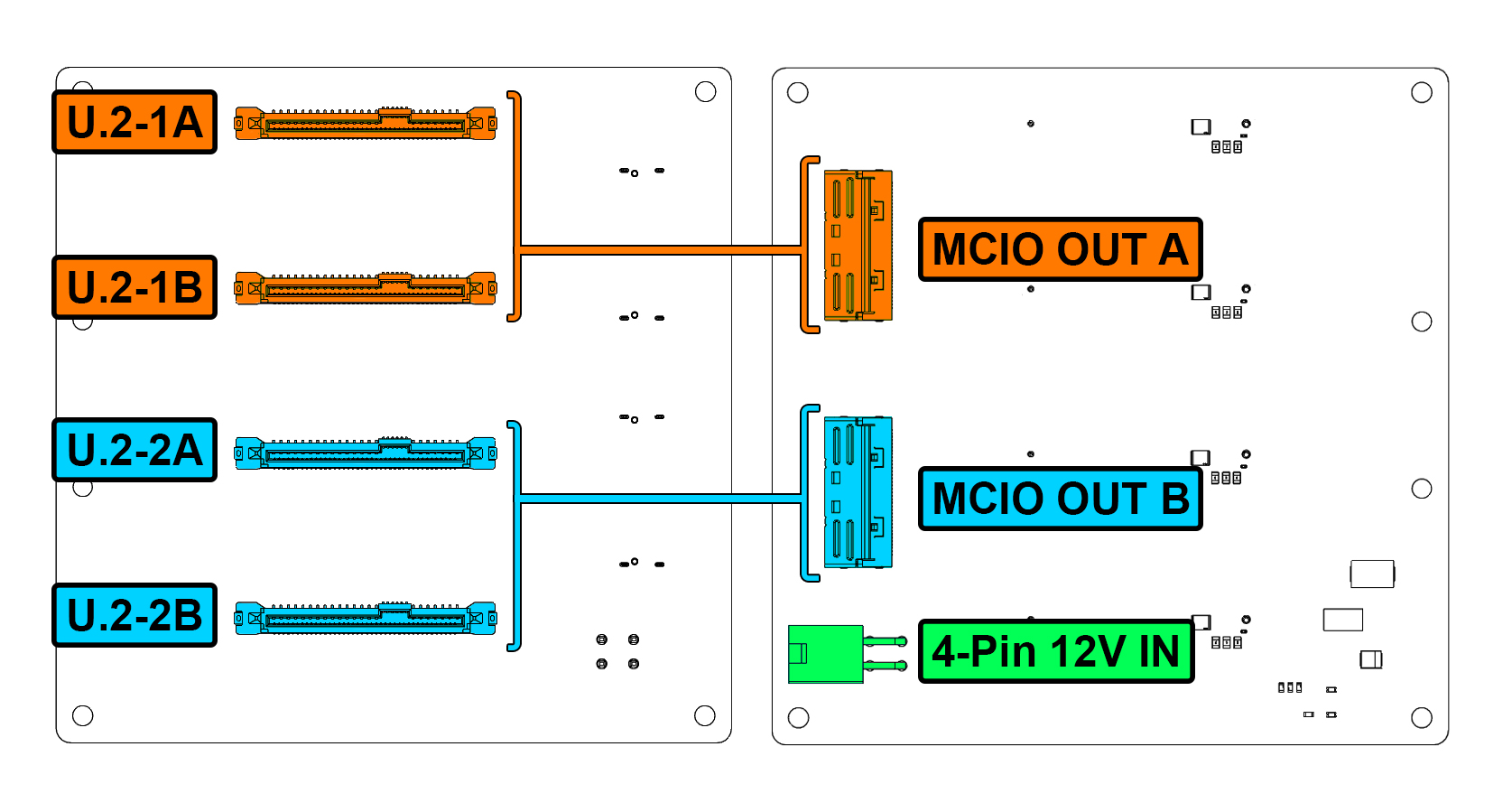

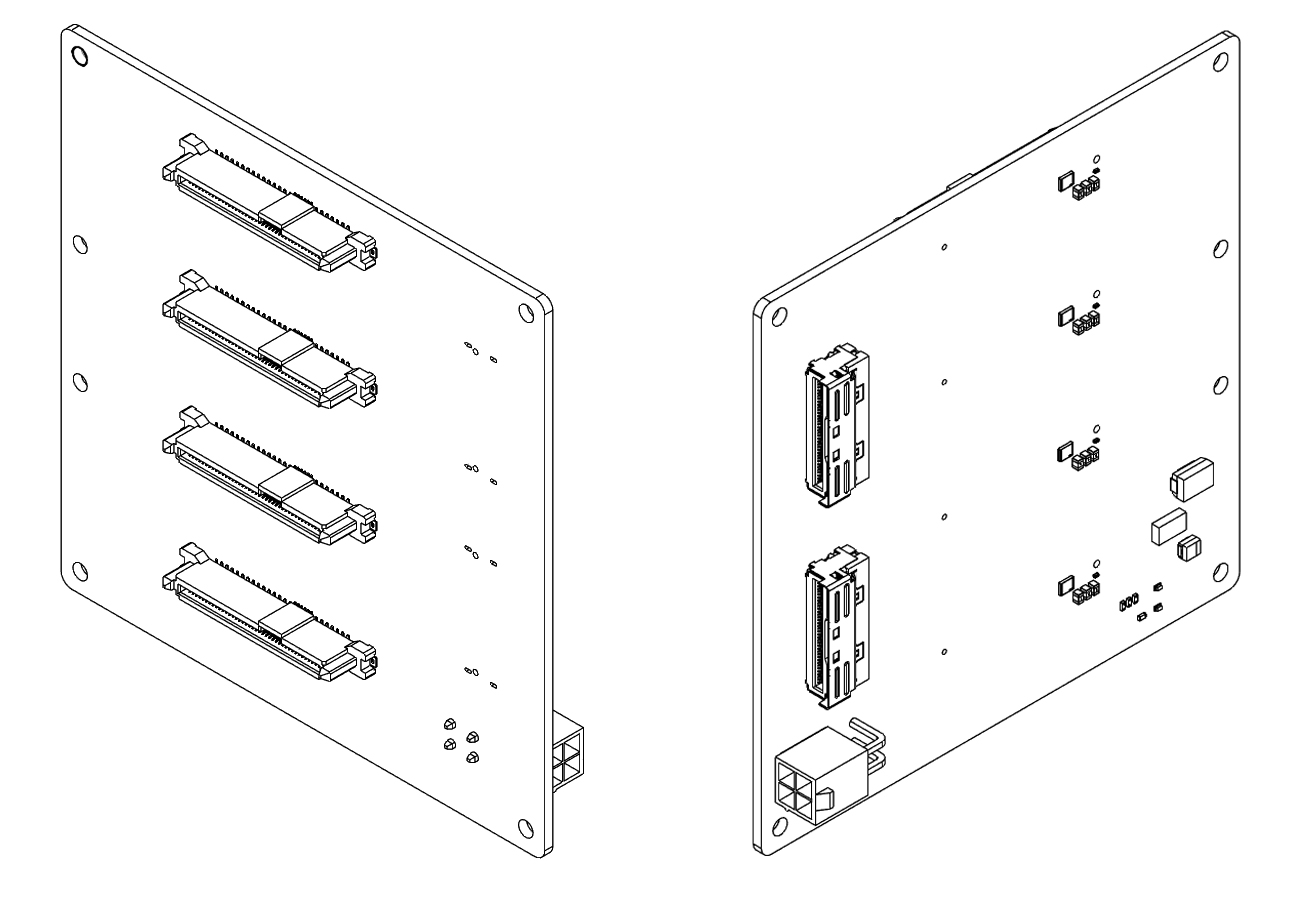

Backplane Diagram¶
Status Indicators¶
Each backplane includes an LED on the back to indicate proper power delivery.
Installation Guide¶
For PCB and Backplane Installation see PCB Installation
For Drive Cage Installation see Cage Installation
Drive Installation¶
- Insert drives gently into drive cages.
- Gently press drive down until firmly seated.
- Verify with LED indicators after system power-on.
