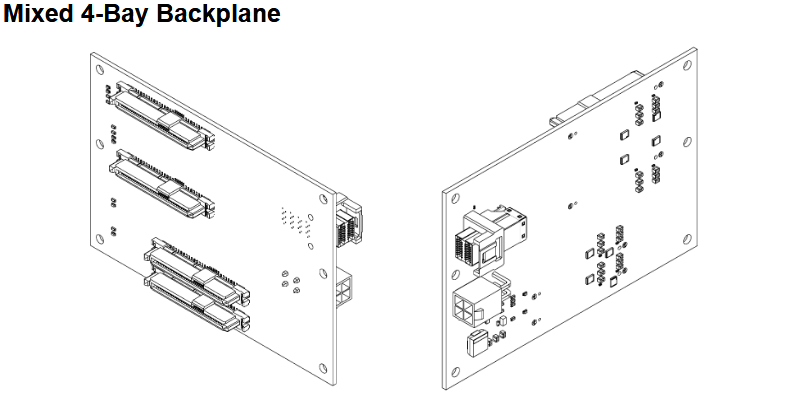

Mixed 4-Bay Backplane¶
Overview¶
The Mixed 4-Bay Backplane provides the flexibility of both 2.5" and 3.5" drive support in a single PCB, ideal for hybrid storage configurations combining SSDs and traditional hard drives.
This backplane combines the best of both storage worlds, allowing users to optimize for both performance (SSD) and capacity (HDD) within the same chassis row.
Key Features¶
- Hybrid connectivity 2x 2.5" SSD + 2x 3.5" HDD connectors
- Unified power management for both drive types
Technical Specifications¶
| Parameter | Specification |
|---|---|
| 2.5" Connectors | 2 x SATA/SAS 2.5" |
| 3.5" Connectors | 2 x SATA/SAS 3.5" |
| SAS Output | 1 SAS Out Connector |
| Input Voltage | 12V DC |
| Output Voltages | 12V pass-through, 5V regulated (5A Max) |
| Max Power Consumption | 40 Watts |
| Hot-Swap | Yes |

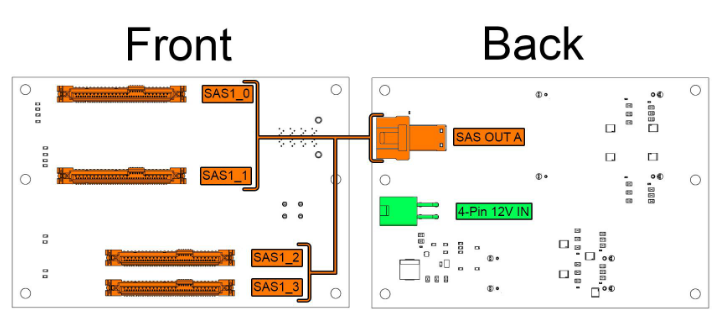

Backplane Diagram¶
Status Indicators¶
Each drive bay includes:
- Power LED Green when drive is powered
- Activity LED Flashing during I/O operations
Power LED Compatibility
Some drives do not trigger the LEDs but are functioning correctly.
Installation Guide¶
For PCB and Backplane Installation see PCB Installation
For Drive Cage Installation see Cage Installation
Drive Installation¶
- Insert drives gently into drive cages.
- Gently press drive down until firmly seated.
- Verify with LED indicators after system power-on.
