Fan Installation

Overview

Key Features

• Hako-Core supports up to 9 fans
• Hako-Core Mini supports up to 6 fans

Maximum Fan Configuration

Hako-Core

Location	Included	Additional	Total
Front Panel	3 fans	0 fans	3 fans
Middle Cage Bracket	0 fans	+3 fans	3 fans
Rear Cage Bracket	0 fans	+3 fans	3 fans
Grand Total	3 fans	+6 fans	9 fans

Hako-Core Mini

Location	Included	Additional	Total
Front Panel	3 fans	0 fans	3 fans
Middle Cage Bracket	0 fans	+3 fans	3 fans
Rear Cage Bracket	0 fans	+3 fans	3 fans
Grand Total	3 fans	+6 fans	9 fans

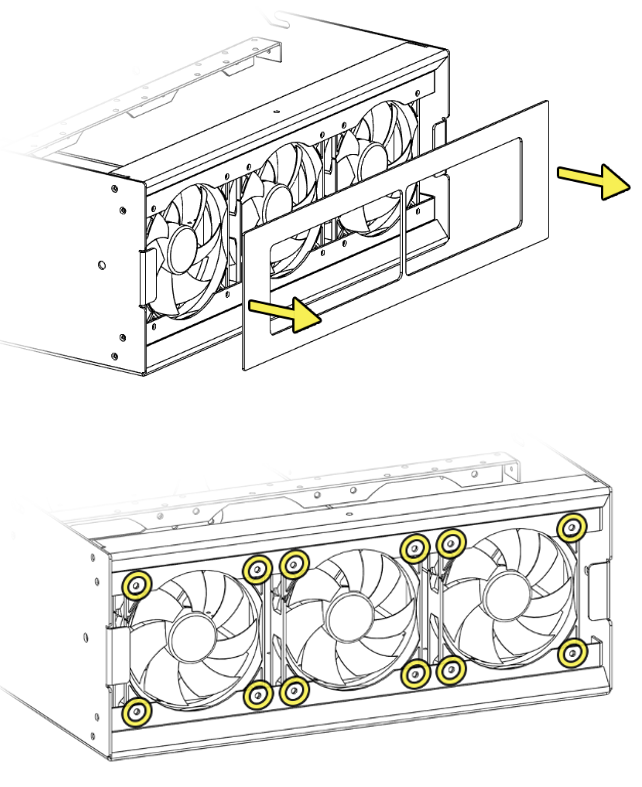

Front Panel Fan Installation

Installation Process

Cage Removal Required

There must be no drive cages installed in the first row to access fan mounting points.

1. Locate the magnetic attachment points on the front panel
2. Gently pull the panel away from the chassis - magnets will release
3. Use provided screws to secure the fans onto the mounting locations.
4. Connect fan power and control cables

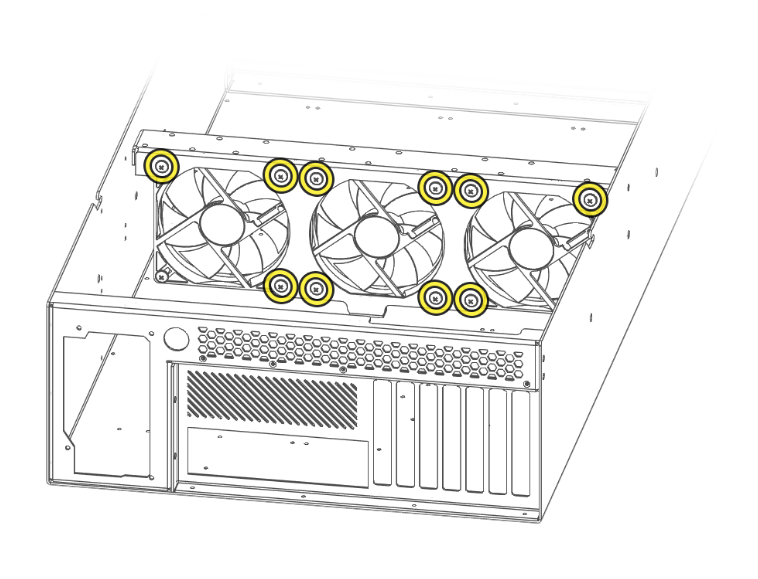

Rear and Middle Fan Installation

Installation Process

Cage Clearance

There must be no cages installed around the respective rows for fan access. Remove cages before attempting fan installation.

1. Remove relevant drive cages from the target row
2. Mount fans in correct orientation (airflow pointing out the back of the chassis)
3. Secure with provided screws
4. Connect fan power and control cables

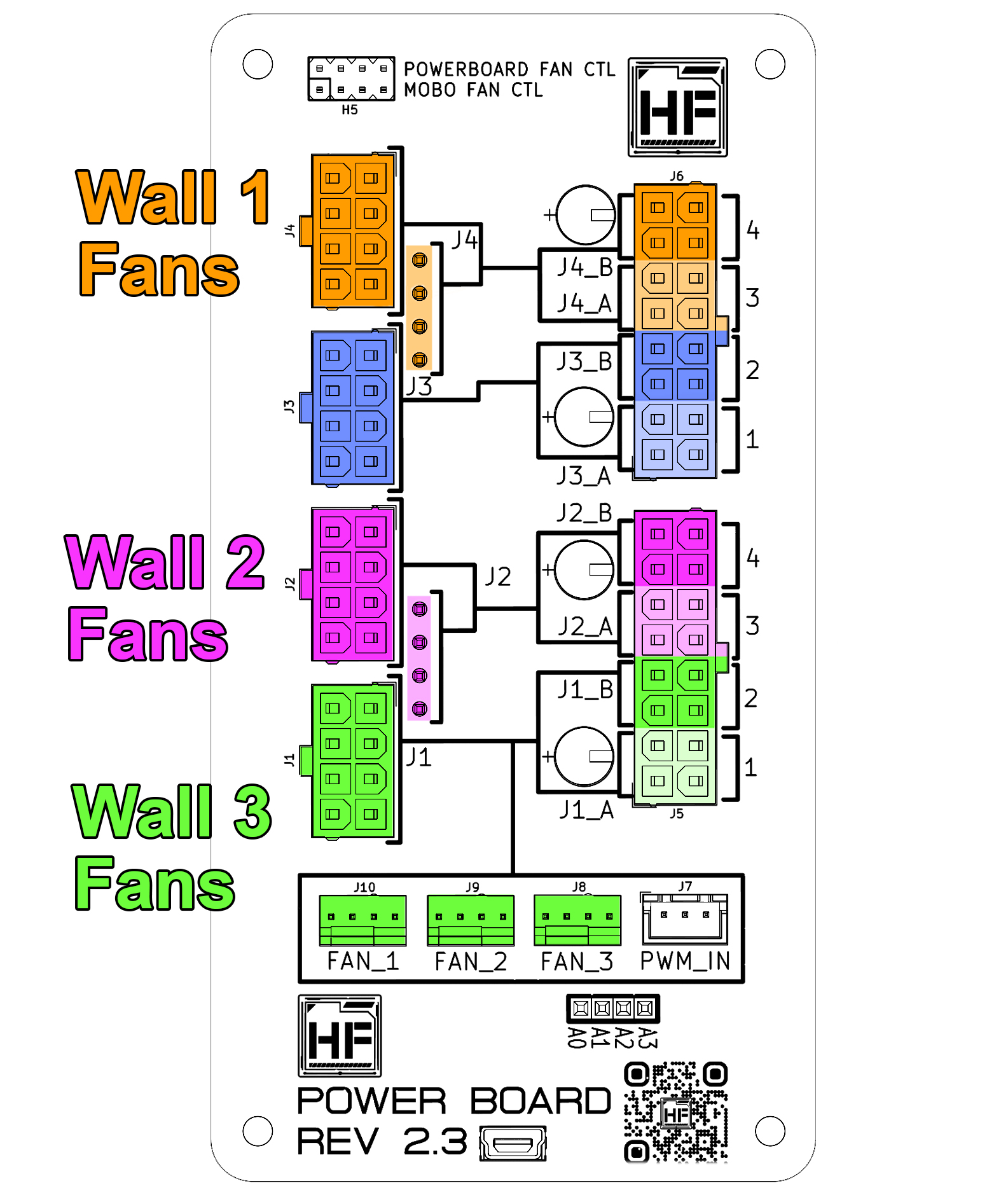

Power and Control Connections

Fan Power Options

1. Hako-Core Powerboard

   • 4-pin fan outputs available
   • Powered by PCIe IN 1 rail
   • Up to 4 fans per powerboard

2. Hako-Core Mini Powerboard

   • 4-pin fan outputs available
   • Powered by PCIe IN 1 rail
   • Up to 4 fans per powerboard

3. Dedicated Fan Controller

   • External PWM controller
   • Advanced temperature-based control
   • Support for many fans
