Server Rails

Hako-Core

Server Rail Core

Hako-Core Mini

Server Rail Core

Left and Right Rails

Take note of the L and R stickers on the rails and mount them on the correct side.

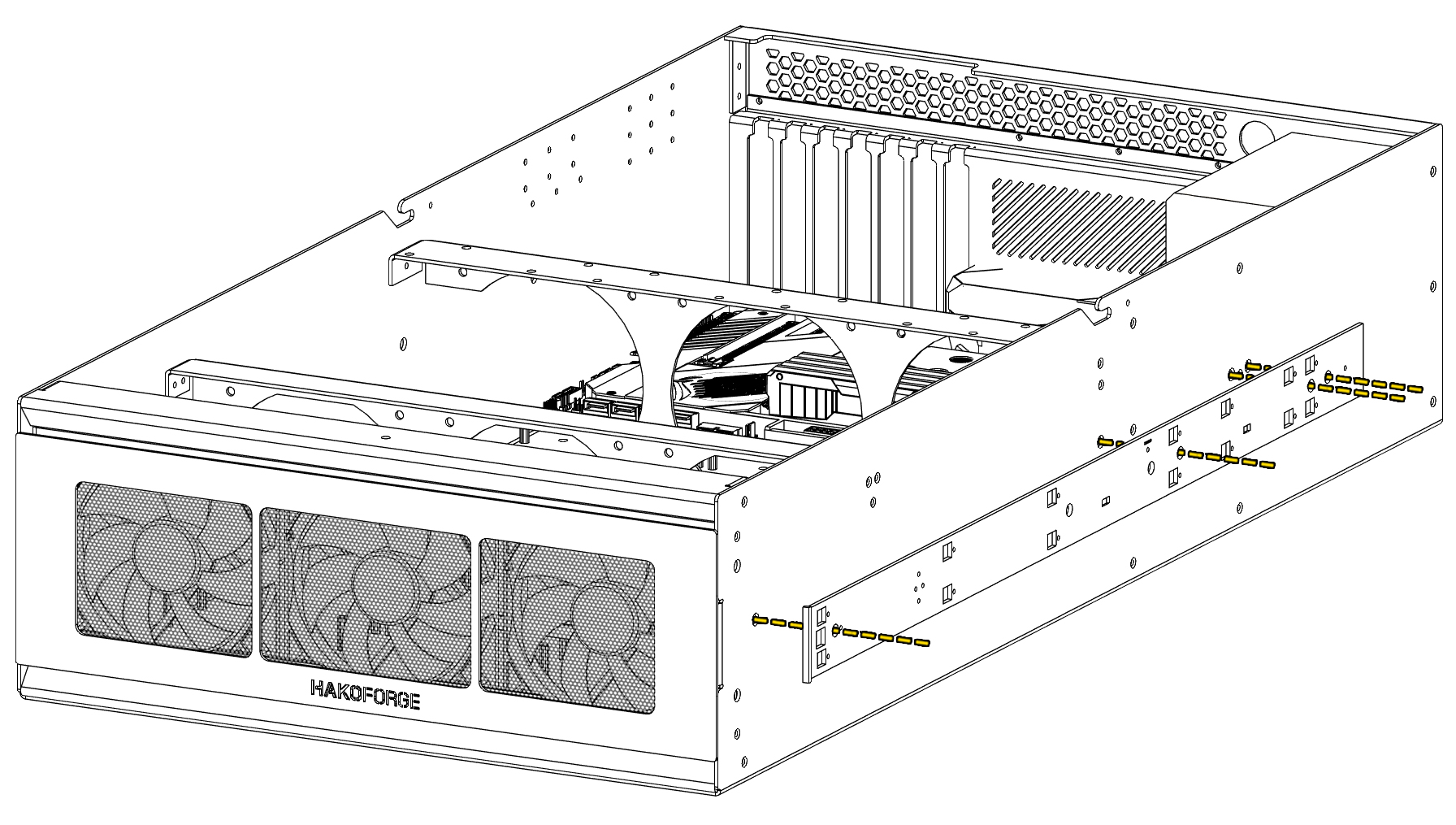

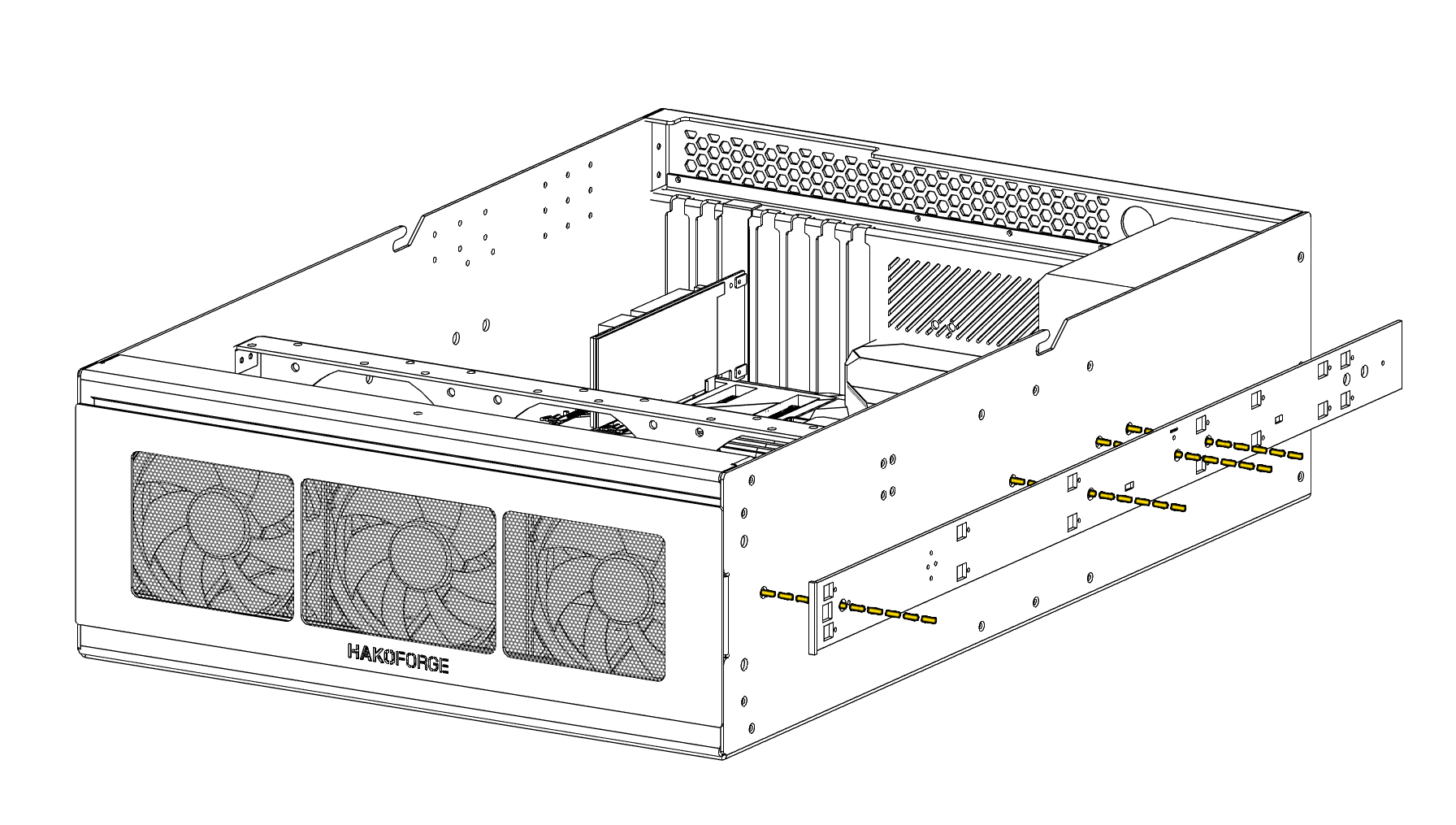

Inner Server Rail Mounting Holes

When installing the inner server rails, use the screw holes shown in the diagram. Not all holes in the server rail are used.

Server Rack Ears

Rack Ear

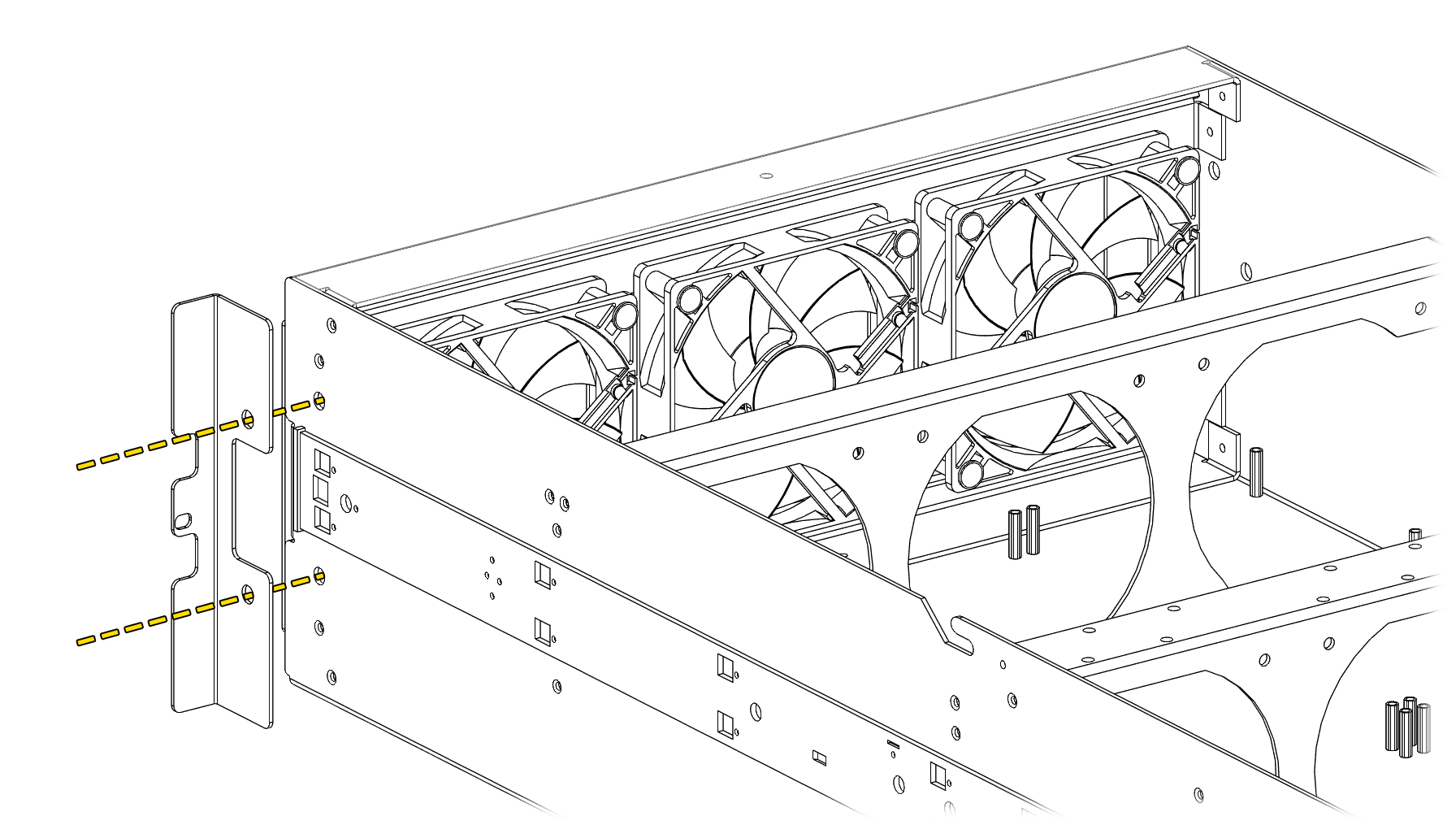

These metal flanges are used to secure the Hako-Core to a server rack's frame.

Left and Right Server Rack Ears

Notice the rack frame holes are along the bottom part of the rack ears. Use this feature to distinguish between left and right rack ears.

Supporting The Chassis In A Server Rack

The rack ears alone are not enough to hold the chassis in a server rack. Server rails must be used. Rack ears are only to prevent the chassis from sliding out of the rack.
