Dimensions and Specifications¶
Physical Dimensions¶
| Specification | Value |
|---|---|
| Recommended PSU | Corsair HX1000i |
| GPU Clearance | Length: ~320mm, Height: ~154mm |
| CPU Cooler Clearance | ~150mm ±5mm, depending on motherboard |
| Form Factor | 4U |
| Weight | 17 lbs (default configuration) |
| Materials | Powder coated steel |

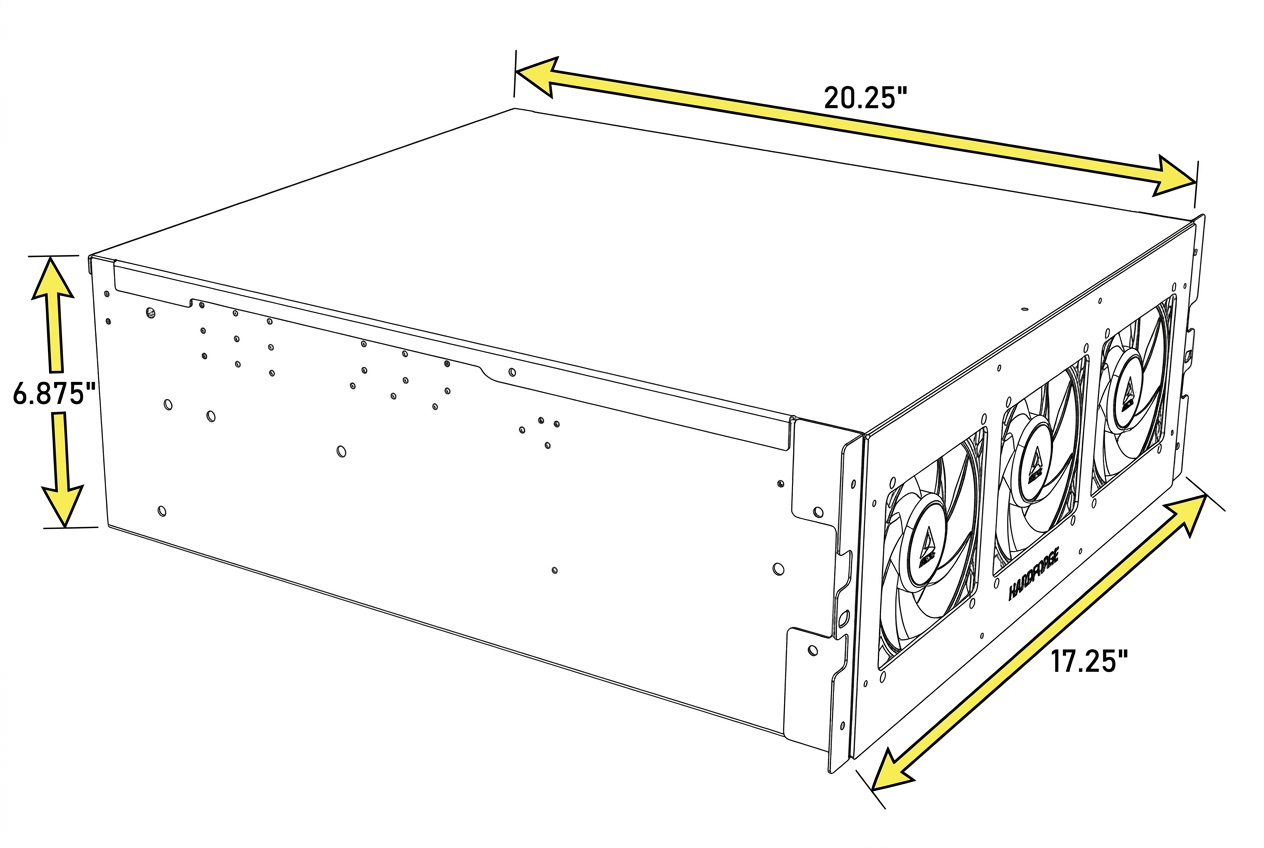

| Dimensions | 20.25" x 17.25" x 6.875" |
| Backplane | 1 preinstalled backplane |
| Drive Support | 14 × 3.5" + 2 × 2.5", or 16 × 2.5" |
| Motherboard Support | CEB, ATX, Micro ATX, Mini-ITX |
| PSU Support | ATX, CRPS with adapter |
| Fans | 3 included fans, up to 9 |
