Lid Removal

Overview

The Hako-Core chassis lid is designed for quick removal while maintaining structural integrity when closed. The Hako-Core features a slide-and-lift lid mechanism for easy maintenance access.

Safety First

It is always recommended to power down the system when working inside the case.

Warning!

Check that no cables will be pinched or stressed during lid removal or installation.
Do not overtighten to avoid stripping the screw. There is 1 extra screw provided in the "extras bag".

Removal Procedure

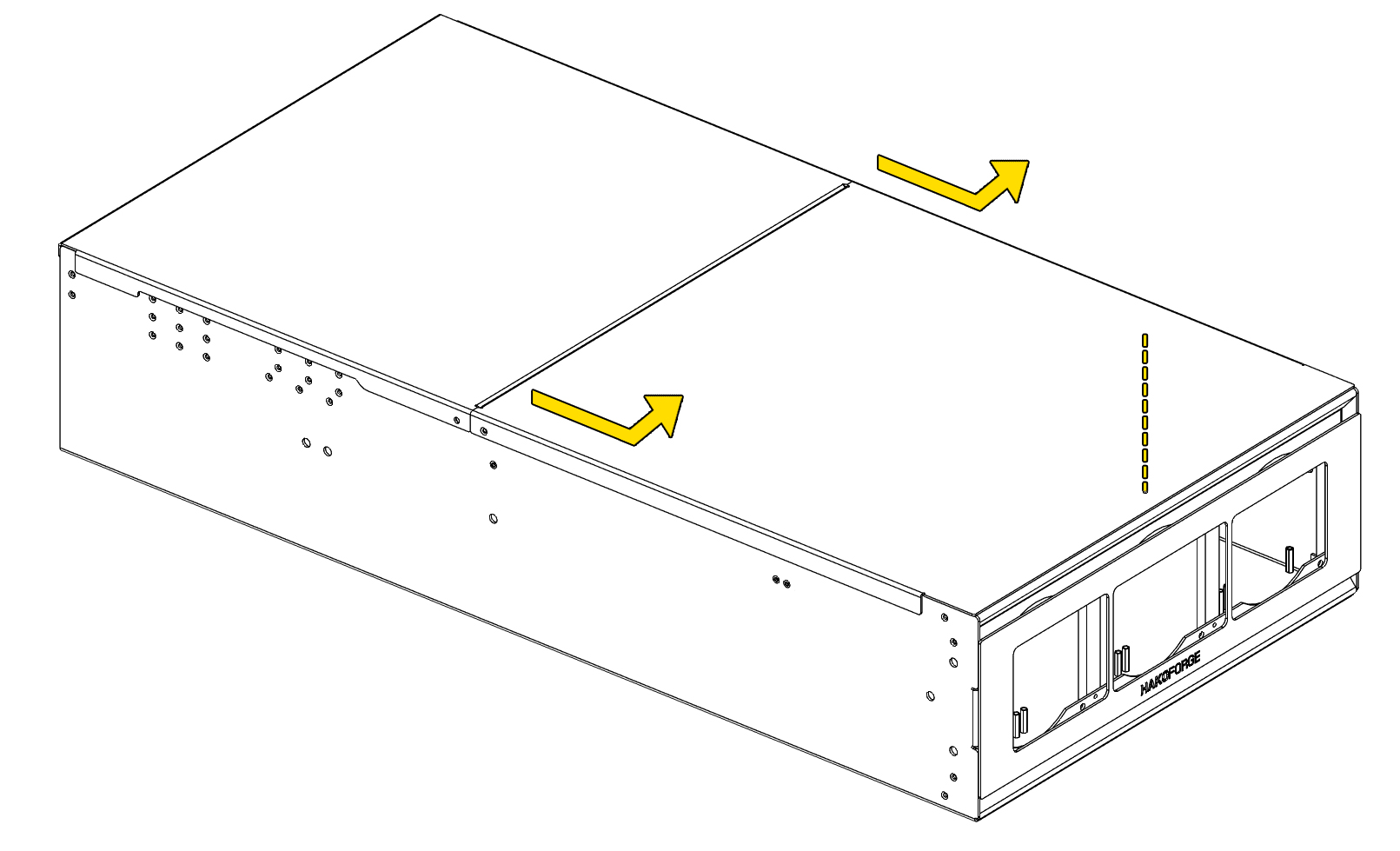

Removing the Front Lid

1. Locate the lid screw on the top front edge of the chassis.
2. Use a #2 Phillips head screwdriver to remove the screw.
3. Slide the lid towards the front of the case to unlatch.
4. Lift and remove the lid

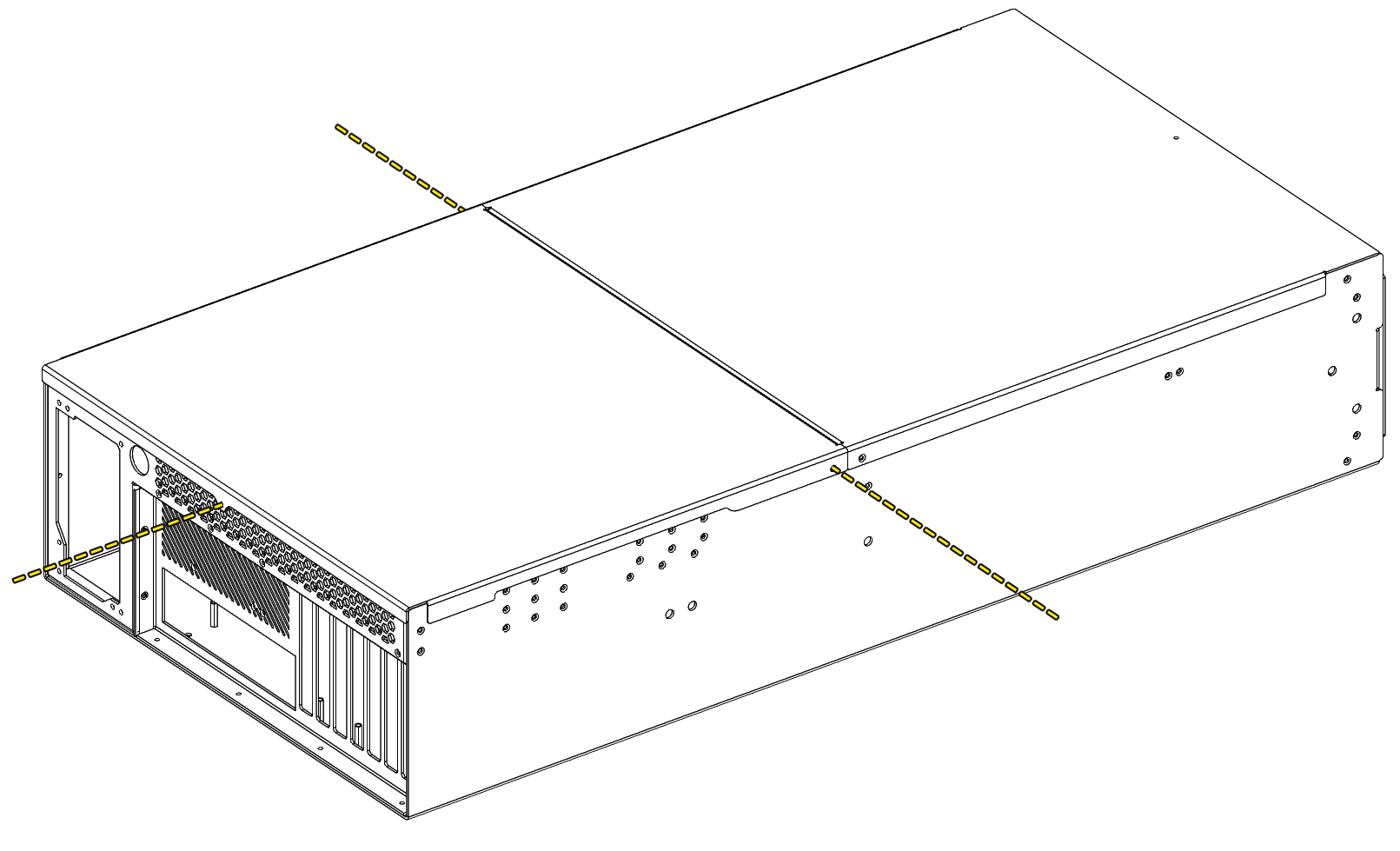

Removing the rear Lid

1. Locate the lid screws on the left and right side of the chassis and use a #2 Phillips head screwdriver to remove the screws.
2. Locate the thumb screw on the back of the chassis and use a #2 Phillips head screwdriver to remove the screw.
3. Lift and remove the lid.

Hako-Core Mini

The Hako-Core Mini has only one lid, which slides towards the back to remove. It does not have a separate rear lid.
