Dimensions and Specifications¶

Hako-Core Specifications¶

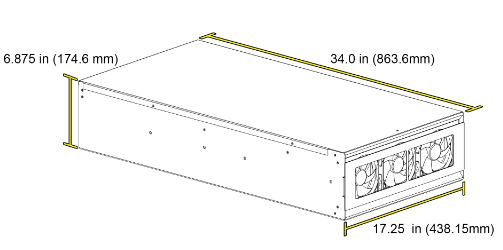

Physical Dimensions¶

Dimension	Measurement
Length	34.0 in (863.6mm)
Width	17.25 in (438.15mm)
Height	6.875 in (174.6mm)

Weight Specifications¶

Configuration	Weight
Minimal Setup	20 lbs
3 fans, 3 cages & PCBs, no drives
Standard Setup	25 lbs
3 fans, 9 cages & PCBs, no drives
Fully Loaded	~35 to ~90 lbs
3 fans, 9 cages & PCBs, 42 HDD, 6 SSD	(depending on drives used)

Drive Power Capability¶

The Hako-Core includes 2 powerboards, making it capable of powering drives up to 1,200 Watts (150 watts maximum per PCIe connector).

Drive Capacity¶

The Hako-Core uses a modular backplane system. It has 3 rows, and each row has 3 full-size backplane spots plus 1 smaller hybrid spot. The full-size backplanes can be mixed and matched across the spots to suit your storage needs.

Backplane	Capacity
HDD	4 × 3.5" HDD
SSD	12 × 2.5" SSD
U.2	4 × U.2
Hybrid (small spot)	2 × HDD + 2 × SSD, or 4 × SSD

A configuration's total capacity is the sum of the backplanes installed. For example, an all-SSD build fills all 9 full-size spots with SSD backplanes (9 × 12 = 108) and all 3 hybrid spots with hybrid backplanes in 4-SSD mode (3 × 4 = 12), for a maximum of 120 SSDs.

JBOD Configuration

Run as a JBOD (without a motherboard), the Hako-Core frees up the motherboard area for an additional row of backplanes.

Motherboard Support¶

The Hako-Core supports a wide range of motherboard form factors:

Mini-ITX
Mini-DTX
FlexATX
Micro ATX
ATX
E-ATX
XL-ATX
SSI-CEB
SSI-EEB

Component Clearance¶

Clearance	Measurement
GPU	Length: 366mm, Height: 154mm
CPU Cooler	~150mm ±5mm, depending on motherboard

Fan Support¶

Fan Thickness Compatibility

Only Fan Wall 1 and Fan wall 3 are capable of 35mm thickness fans. Fan Wall 2 is only able to fit 25mm thickness fans.

Hako-Core supports up to 3 fan walls totaling 9 fans total (120mm)
1 Exhaust fan (80mm or 92mm)
Auxiliary fans for PCIe cooling

Power Supply Support¶

Form Factor: ATX, SFX with adapter, or CRPS with our PSU Adapter
Maximum Length: 200mm
Recommended PSU: Corsair HX1500i
Connector Requirements: Standard ATX power connectors

Airflow Design¶

Front-to-rear airflow pattern
Positive pressure configuration recommended
Variable speed control through motherboard or fan controller

Materials¶

Construction: Powder coated aluminum
Lid: 18 gauge steel
Finish: Durable powder coating for long-lasting protection
Mounting: Standard rack-mountable 4U form factor

Hot-Swap Support¶

All drive bays support hot-swappable operation excluding U.2 backplane
SAS/SATA compatibility across all bays
Individual drive power and data connectivity

Hako-Core Mini Specifications¶

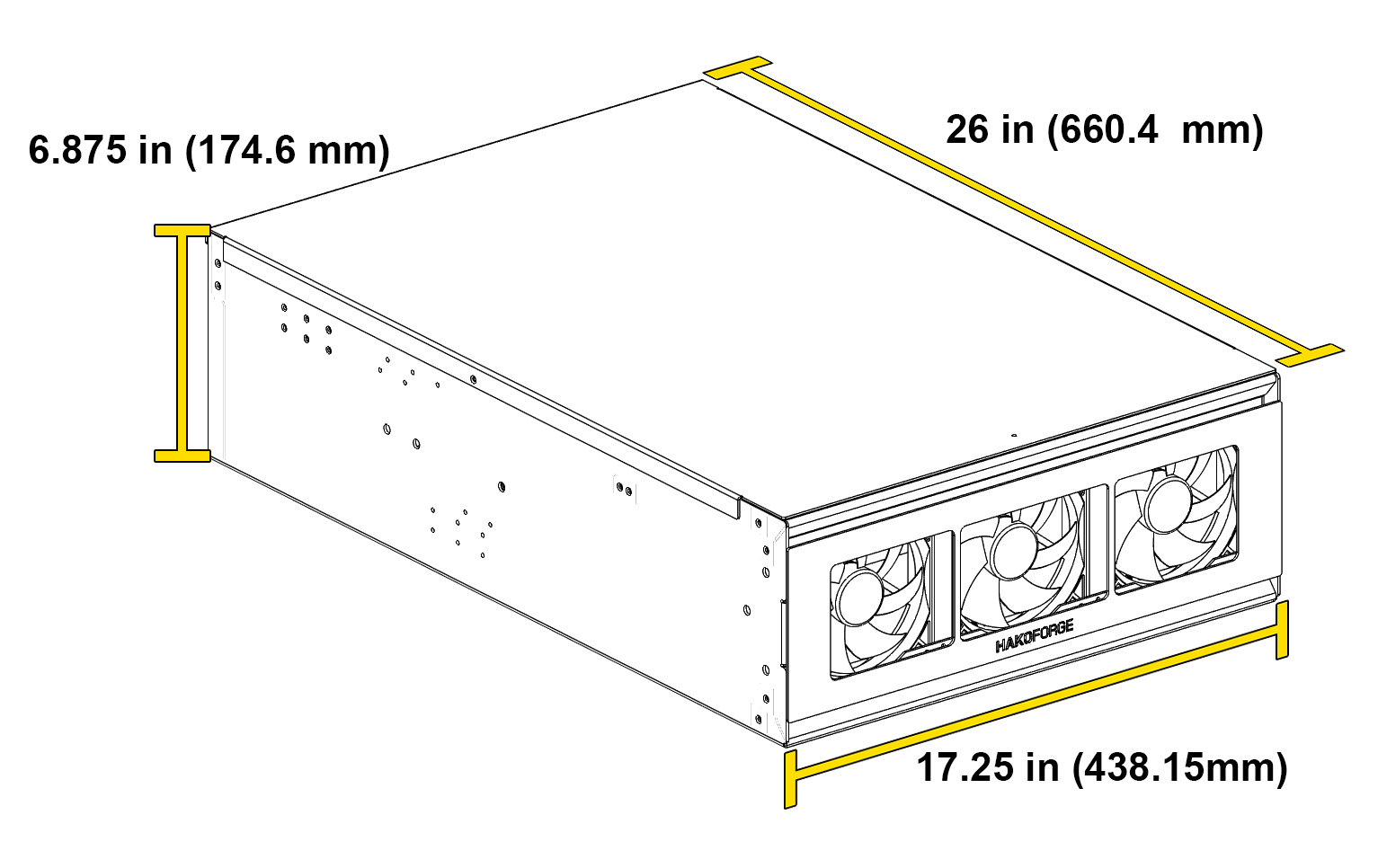

Physical Dimensions¶

Dimension	Measurement
Length	26.0 in (660.4mm)
Width	17.25 in (438.15mm)
Height	6.875 in (174.6mm)

Weight Specifications¶

Configuration	Weight
Minimal Setup	15 lbs
3 fans, 3 cages & PCBs, no drives
Standard Setup	20 lbs
3 fans, 6 standard cages + 2 mini cages & PCBs, no drives
Fully Loaded	~35 to ~75 lbs
3 fans, 6 standard cages + 2 mini cages & PCBs, 28 HDD, 6 SSD	(depending on drives used)

Power Capability¶

The Hako-Core Mini includes 1 powerboard, making it capable of powering drives up to 600 Watts (150 watts maximum per PCIe connector).

Drive Capacity¶

The Hako-Core Mini uses the same modular backplane system as the Hako-Core, but with 2 rows instead of 3. Each row has 3 full-size backplane spots plus 1 smaller hybrid spot, for up to 6 full-size backplanes and 2 hybrid backplanes. The per-backplane capacities are the same as the Hako-Core (see the table above).

For example, an all-SSD Mini build fills all 6 full-size spots with SSD backplanes (6 × 12 = 72) and both hybrid spots in 4-SSD mode (2 × 4 = 8), for a maximum of 80 SSDs.

Motherboard Support¶

The Hako-Core Mini supports the same range of motherboard form factors as the Hako-Core:

Mini-ITX
Mini-DTX
FlexATX
Micro ATX
ATX
E-ATX
XL-ATX
SSI-CEB
SSI-EEB

E-ATX and Larger Boards

When using an E-ATX (or larger) motherboard, the second row of backplanes is limited to the small backplane only. See Component Installation.
